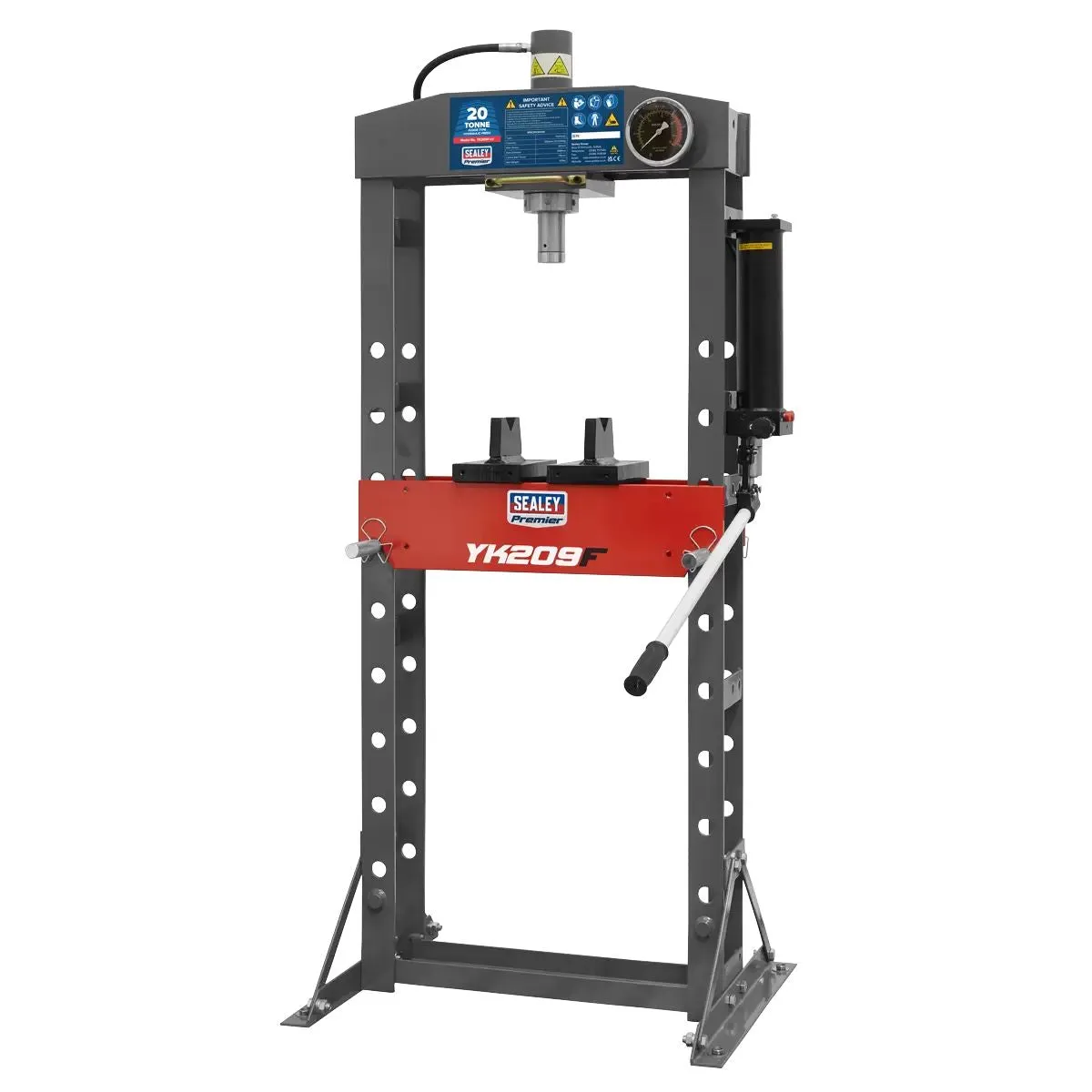

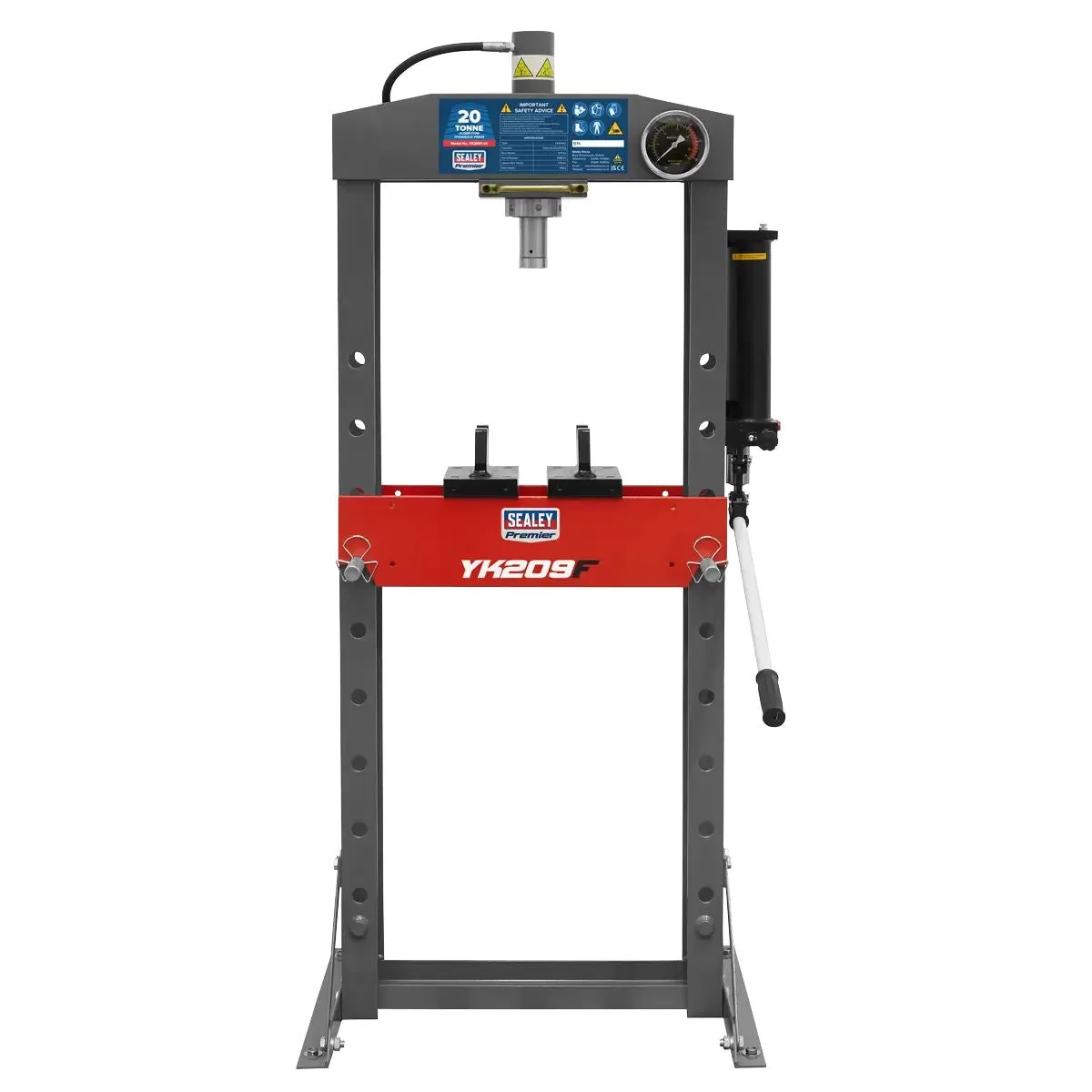

Sealey YK209F Hydraulic Press 20tonne Floor Type
Features:
Heavy-duty steel frame construction with hydraulic pump unit.
Sliding hydraulic ram assembly gives 176mm of lateral travel for off-centre pressing applications.
Frame head fitted with ram pressure gauge.
Supplied with flat pressing plate/V-blocks.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
Part No: YK209F
Barcode: 5054511717518
Bench or Floor Mounting: Floor
Brand: Premier
Capacity: 20 Tonne
Gauge Included: Yes
Lateral Ram Travel: 176mm

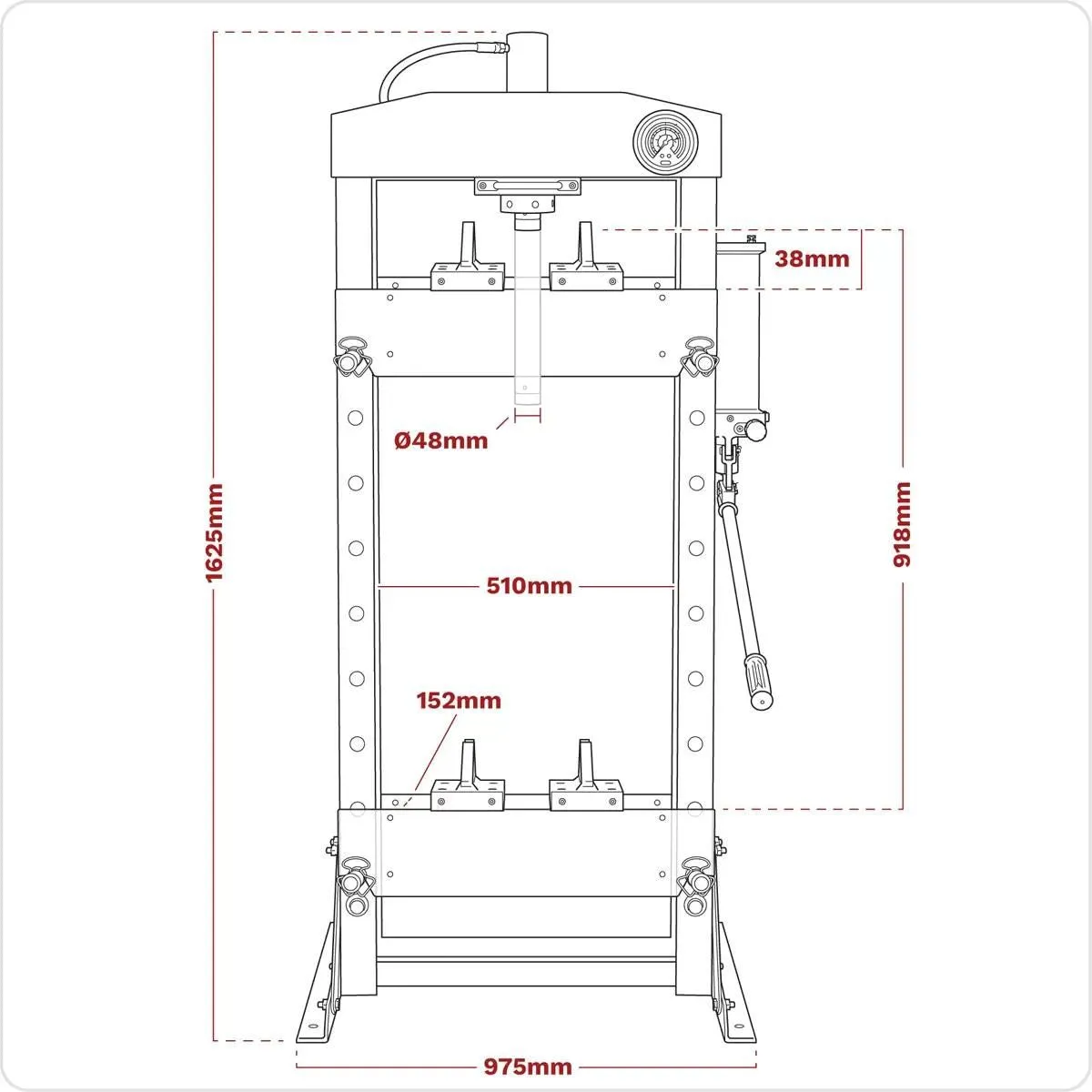

Maximum Height - Ram to Table: 918mm
Minimum Height - Ram to Table: 38mm
Nett Weight: 105kg
Optional Accessories: YKSG20 - Safety Guard. YKPP8 - Press Pin Set
Overall Height: 1625mm
Overall Width: 975mm
Ram Diameter: 48mm
Ram Stroke: 187mm
Table Aperture: 152mm
Type: Hydraulic
Working Table Depth: 172mm
Working Table Width: 510mm
Barcode: 5054511717518
Bench or Floor Mounting: Floor
Brand: Premier
Capacity: 20 Tonne
Gauge Included: Yes
Lateral Ram Travel: 176mm
Maximum Height - Ram to Table: 918mm
Minimum Height - Ram to Table: 38mm
Nett Weight: 105kg
Optional Accessories: YKSG20 - Safety Guard. YKPP8 - Press Pin Set
Overall Height: 1625mm
Overall Width: 975mm
Ram Diameter: 48mm
Ram Stroke: 187mm
Table Aperture: 152mm
Type: Hydraulic
Working Table Depth: 172mm
Working Table Width: 510mm
