Product Details
＋

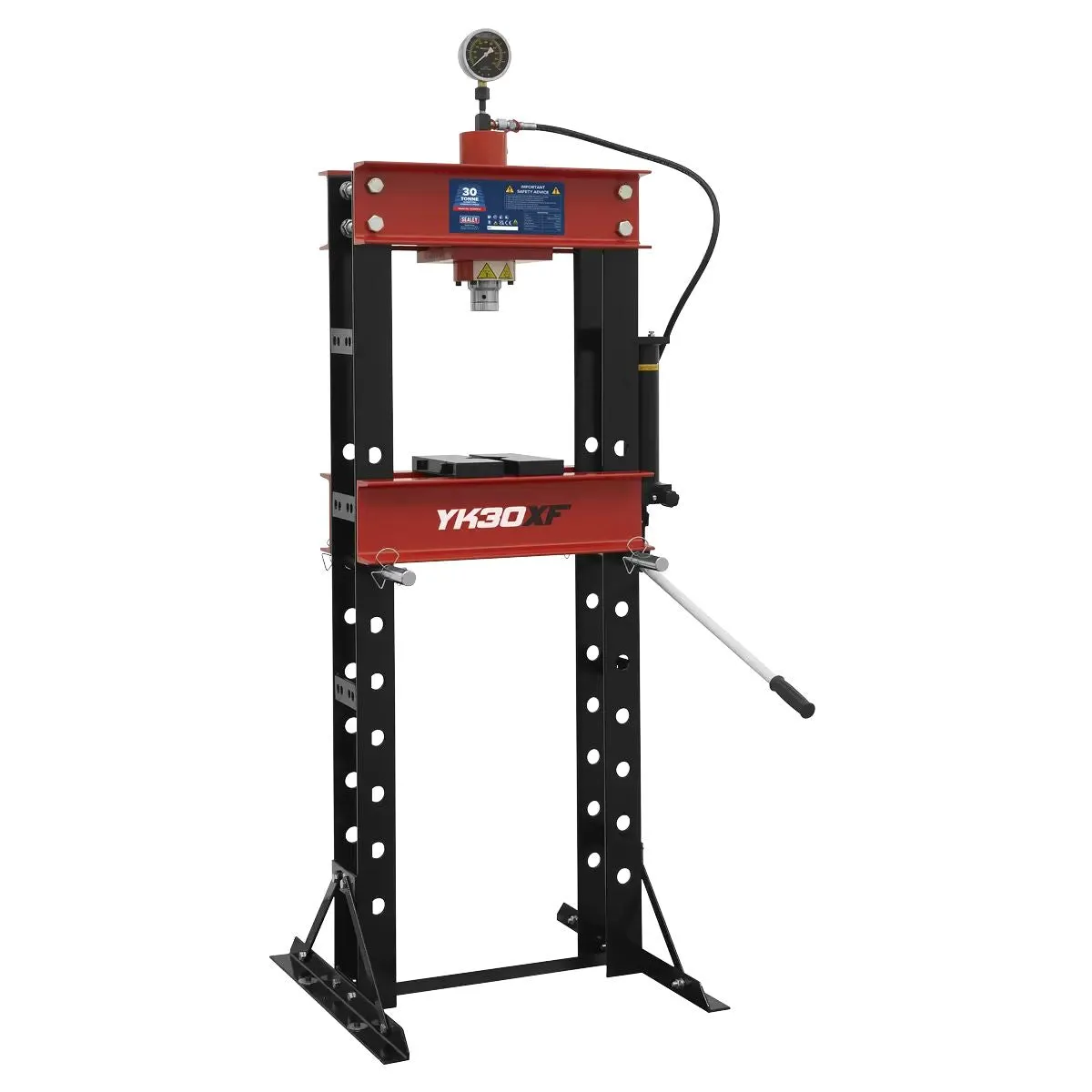

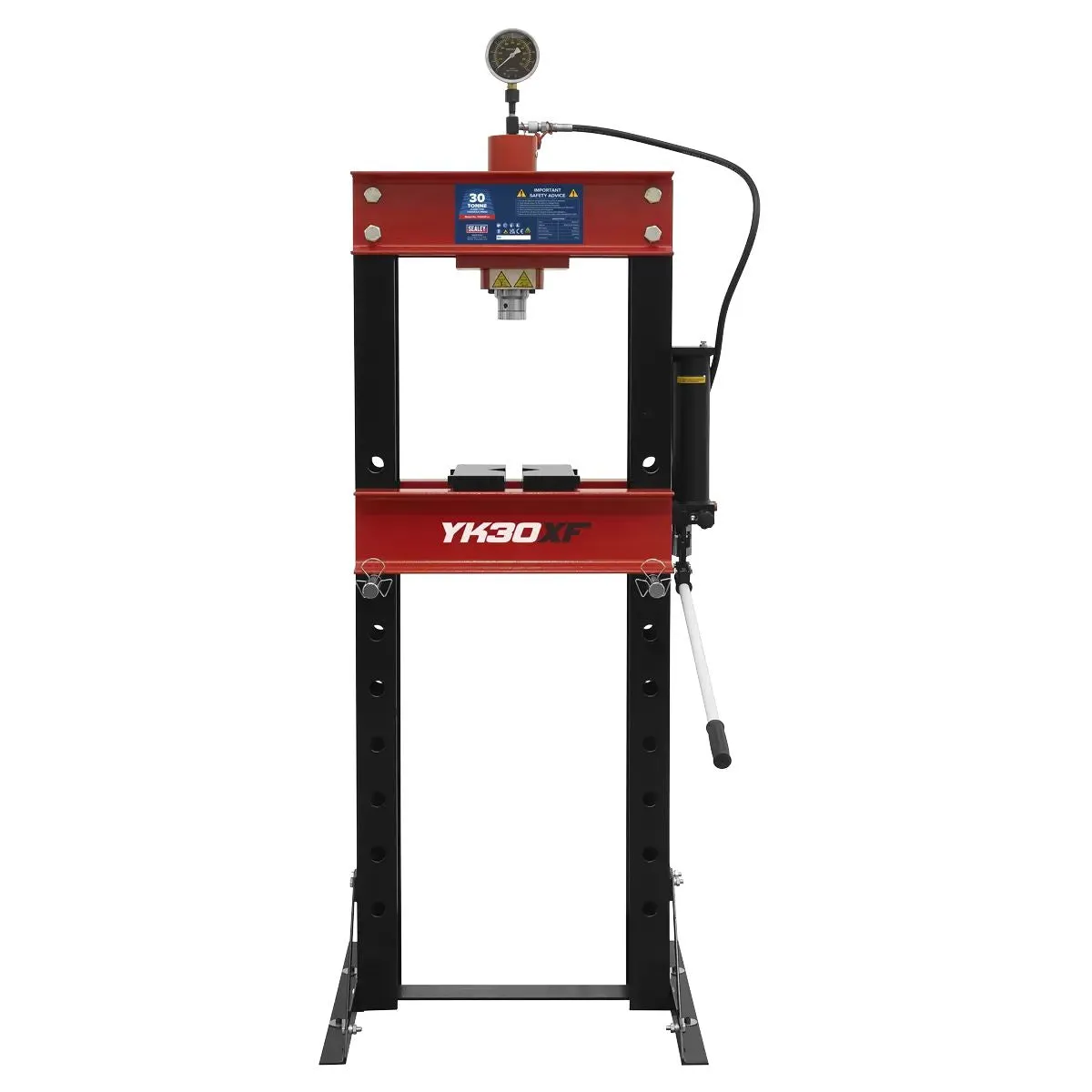

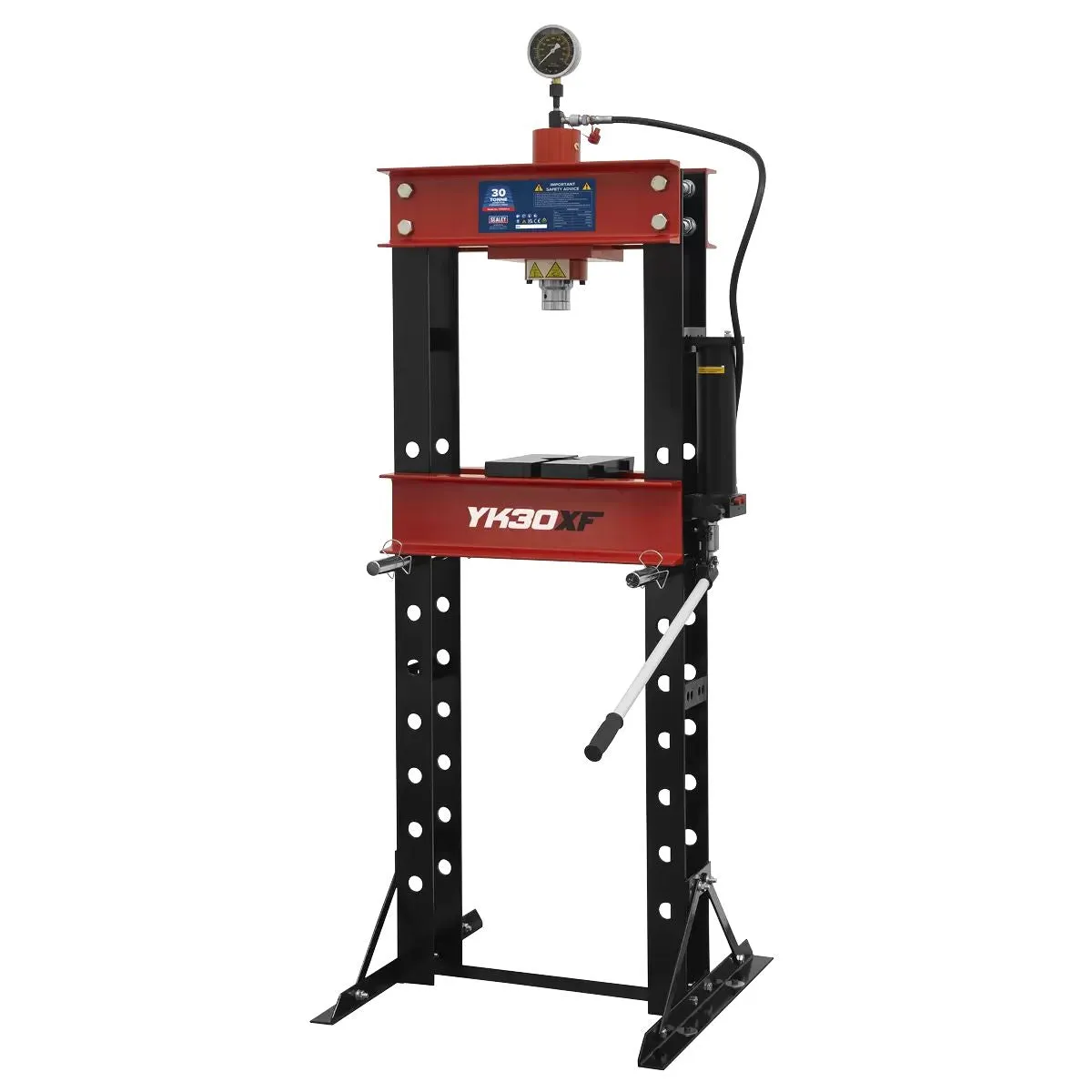

Sealey YK30XF Hydraulic Press 30tonne Floor Type
Features:
Steel frame construction with side mounted hydraulic pump unit.
Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.
Includes flat pressing plate/V-blocks.
Fitted with ram pressure gauge.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

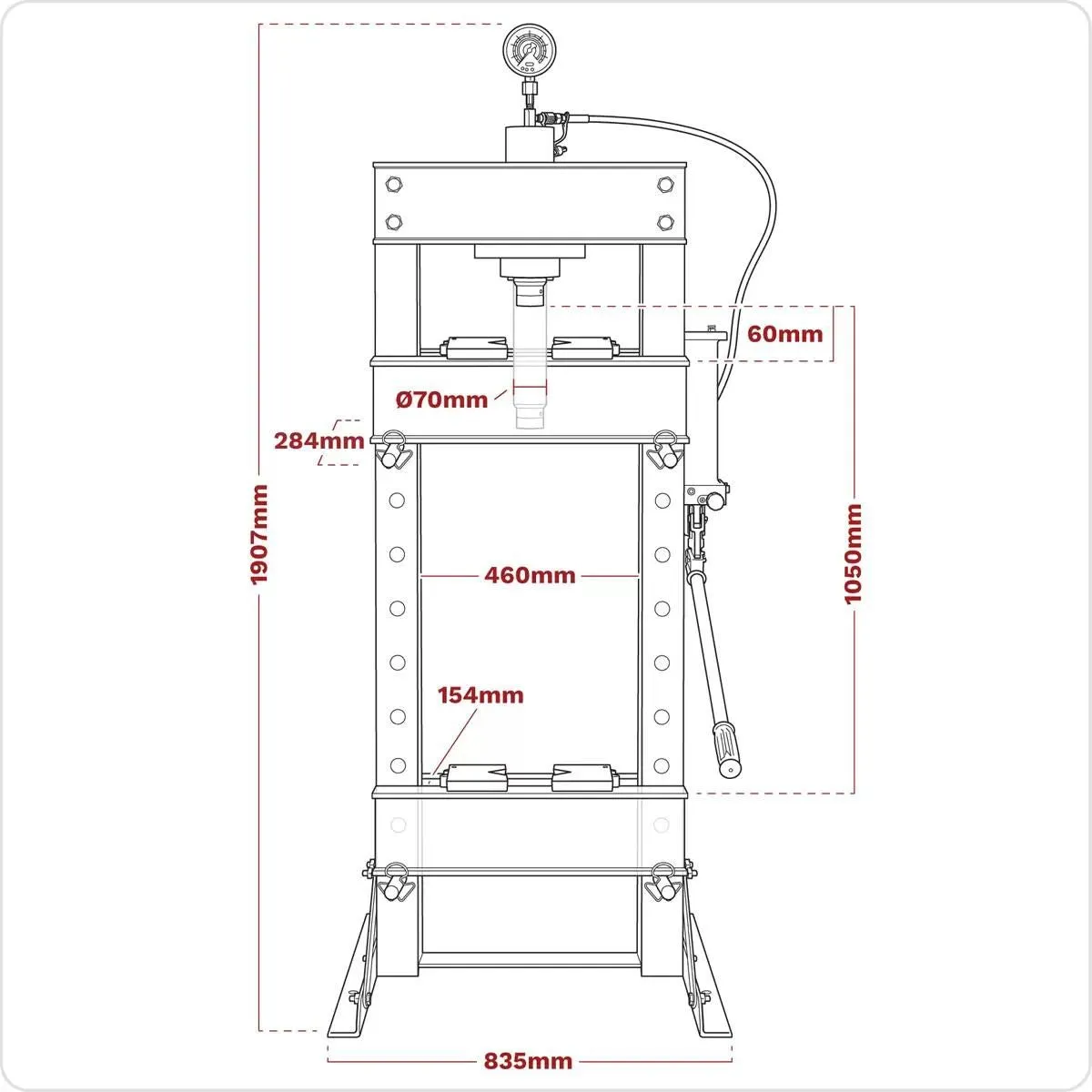

Specification:
Part no: YK30XF
Barcode: 5054630015717
Bench or Floor Mounting: Floor
Capacity: 30 Tonne
Gauge Included: Yes
Lateral Ram Travel: 200mm
Maximum Height - Ram to Table: 1050mm
Minimum Height - Ram to Table: 60mm
Nett Weight: 141.5kg
Optional Accessories: YKPP8 - Press Pin Set
Overall Height: 1907mm
Overall Width: 835mm
Ram Diameter: 70mm
Ram Stroke: 150mm
Table Aperture: 154mm
Type: Hydraulic
Working Table Depth: 284mm
Working Table Width: 460mm
Barcode: 5054630015717
Bench or Floor Mounting: Floor
Capacity: 30 Tonne
Gauge Included: Yes
Lateral Ram Travel: 200mm
Maximum Height - Ram to Table: 1050mm
Minimum Height - Ram to Table: 60mm
Nett Weight: 141.5kg
Optional Accessories: YKPP8 - Press Pin Set
Overall Height: 1907mm
Overall Width: 835mm
Ram Diameter: 70mm
Ram Stroke: 150mm
Table Aperture: 154mm
Type: Hydraulic
Working Table Depth: 284mm
Working Table Width: 460mm
Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands. Northern Ireland & The Isle of Wight then your order will get cancelled automatically.
**images for illustrative purposes only please refer to description and specification for full details of product**
